0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement

Trung Quốc 0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement nhà cung cấp
0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement nhà cung cấp 0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement nhà cung cấp 0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement nhà cung cấp

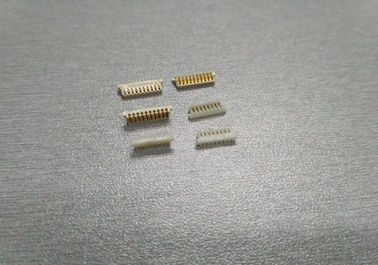

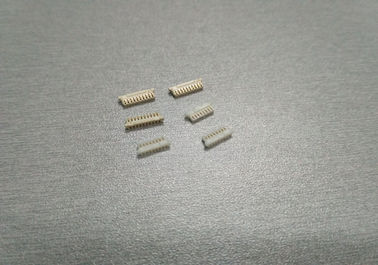

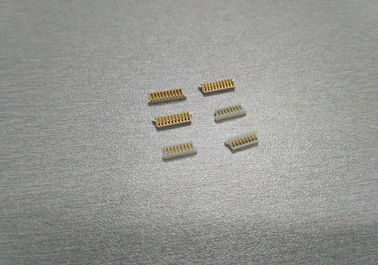

Hình ảnh lớn :  0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement

Thông tin chi tiết sản phẩm:

Place of Origin: Dongguan, China(mainland)
Hàng hiệu: HRT
Chứng nhận: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: A0800HI-08P

Thanh toán:

Minimum Order Quantity: 5000pcs
Giá bán: negotiated
Packaging Details: Reel, Tube(Pipe), Tape, Bag or as required
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 28000K pcs per month
Chi tiết sản phẩm
Category: Displacement Connectors Pitch: 0.8mm
Flammability: 94V-0 Wire range: AWG32# & 36#
Gender: Receptacle Application: Signal, Wire-to-Board
Điểm nổi bật:

Connector Wire To Board

,

Board To Wire Connectors

1, Detailed specification:



        1. Basic information:

  • Color: Cream
  • Row No.: Single
  • Circuits: 2pin to 22pin
  • Insulation O.D.: 0.39mm
  • Matched parts: A0800series wafer
  • Pin material of wafer: Phosphor Bronze or Tin-plated
  • Solder tabs:Phosphor Bronze or Tin-plated
  • Wafer:standard type:Nylon 46 UL94V-0(cream); Halogen free:LCP UL94V-0
  • Mounting Type: Disconnectable type
    IDC style, Compact type, Low-profile type

        2. Electrical characteristic:

  • Current Rating: 0.5A AC,DC(AWG#30);0.2A AC, DC(AWG#36)
  • Voltage Rating: 30V AC, DC
  • Contact Resistance: 20mΩ Max
  • Insulation Resistance: 100mΩ
  • Withstanding Voltage:  200V AC/minute

        3. Mechanical characteristic:

  • ​​Temperature Range:-25°C ~+85°C
  • Terminal/Housing Retention Force:0.25kgf (Min.)
  • Pin Retention Force:0.25kgf (Min.)

 2, Related engineering drawing and testing report

The attached picture is our standard engineering drawing and report for your reference, it will help you to

know our product feature, then you can choose the right models.



                                                             Simplified  Dimension Drawing



0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement

                                                                                 Testing report

0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement
0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement

0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement
0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement


3, FAQ
1) What's the delivery time?
Usually 5-8 days after payment received, longer for large order.

2) What’s the payment term?
Our payment terms: T/T, PayPal, Western Union, Moneygram, L/C, etc.

3) What's the shipping way?
Via DHL, FedEx, EMS, UPS, by air, by sea...etc.

4) Do you have after-sales service?
Yes. 8 hours online service

5) What is your guarantee for the goods?
We will replace 1:1 for the defective goods after sales.12 months guarantee after manufacturing.



4, Application field of this part

These series part are ideal for most of household appliance, computer, communication device. We also can controll defective rate in a low value, so our parts are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.

0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement



5, Multiple, safe and fast shippment

Various quick delivery way can be offered by us, then you can get our parts to test in a very short time. And it makes your work more effective. Let's work together, connect the world.

0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement
