Nhà Sản phẩmWire Connector Terminals

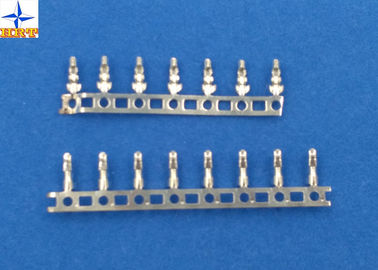

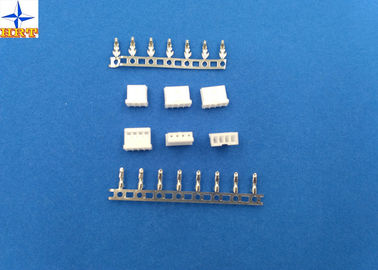

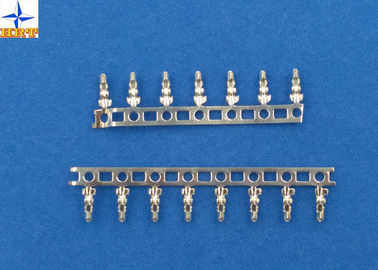

1.50mm Pitch AWG#22 - 28 Wire Connector Terminals Phosphor Bronze / Tin - Plated Contact

1.50mm Pitch AWG#22 - 28 Wire Connector Terminals Phosphor Bronze / Tin - Plated Contact

    • 1.50mm Pitch AWG#22 - 28 Wire Connector Terminals Phosphor Bronze / Tin - Plated Contact
    • 1.50mm Pitch AWG#22 - 28 Wire Connector Terminals Phosphor Bronze / Tin - Plated Contact
    • 1.50mm Pitch AWG#22 - 28 Wire Connector Terminals Phosphor Bronze / Tin - Plated Contact
  • 1.50mm Pitch AWG#22 - 28 Wire Connector Terminals Phosphor Bronze / Tin - Plated Contact

    Thông tin chi tiết sản phẩm:

    Place of Origin: China
    Hàng hiệu: HRT
    Chứng nhận: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A1501

    Thanh toán:

    Minimum Order Quantity: 5000 PCS
    Giá bán: Negotiated
    Packaging Details: paper tray with out carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 1000 pcs per day
    Liên hệ với bây giờ
    Chi tiết sản phẩm
    Product Name: A1501-TPE Pitch: 1.50mm
    Finish: Tin-plated Material: TER: Phosphor Bronzne
    Insulation O.D,: 1.15mm(max) Fire-protection rating: UL 94V-0
    Used in: A1501 series housing wire range: AWG#22--#28
    Làm nổi bật:

    Crimp Wire Connectors

    ,

    Connector Crimp Terminal

    Description:

    1. A1501 series Terminals are stamped by Phosphor Bronze, E-Stamping beforeTin-plated , Tin-plated we calling A1501-TPe , Minimum packing quantity is 20,000pcs/Reel. The daily production capacity is 300 to 400 KPCS.

    2. Terminals' wire range :AWG #22--#28insulation OD is0.90mm(Max).

    3.  A1501 series terminal Used in  A 1501series  housing



    Actuator Insertion/Withdrawal Force:



    1.50mm Pitch AWG#22 - 28 Wire Connector Terminals Phosphor Bronze / Tin - Plated Contact



    Test Description Procedure Requirement

    Contact Resistance

    Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4)    20mΩ (Max.)
    Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B)    1000MΩ (Min.)
    Dielectric Withstanding Voltage Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301))    No Breakdown.
    Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.     5mΩ (Max.)



    Electrical:

    Current rated
         3A AC/DC maximum
    Voltage rated      350V AC/DC
    Withstand voltage      500V AC/minute
    Insulation resistance     1000MΩ min
    Contact resistance      20MΩ max
    Operating temperature      -25 - 85°C





    Drawing:


    1.50mm Pitch AWG#22 - 28 Wire Connector Terminals Phosphor Bronze / Tin - Plated Contact

    Quality:



    The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit

    Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
    step are doing by ourself. So we can control the quality.



    1. Manufactured under strict controls.

    2. ISO 9001:2008

    3. UL Certification

    4. Reach Cetitifaction

    5. RoHS compliance

    6. OEM for PULSE

    7. Active Environmental policy

    8. Every module tested 3times (not just batch tested)
