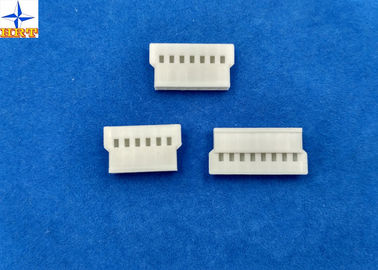

2.0mm Pitch Wire To Wire Connector, 2.00mm Pitch Wire-to-Wire Plug Housing, 51006 Crimp Housing

Thông tin chi tiết sản phẩm:

Place of Origin:	Dongguan, China(mainland)
Hàng hiệu:	HRT
Chứng nhận:	ISO9001/ ISO14001/UL/RoHS/REACH
Model Number:	C2003HF-NP

Thanh toán:

Minimum Order Quantity:	5000 pcs
Giá bán:	USD0.001 to 0.5 per pcs
Packaging Details:	bag with outside paper carton
Delivery Time:	5 to 8 working days after payment checked
Payment Terms:	TT, Western Union, PayPal, L/C
Supply Ability:	28 million pcs per month

Liên hệ với bây giờ

Chi tiết sản phẩm

Color:	White	Pitch:	2.00mm
Materials:	PBT, UL94V-0	Suitable housing:	C2003HM series
Packaging Type:	Bag	Application:	Power, Wire-to-Wire
Điểm nổi bật:	Crimp Terminal Connector , Connector Crimp Terminal

2.0mm pitch housing wire to wire connector type with PA66 material halogen free parts C2003HF

1, Specification excel of part

Detailed information

Basic size information	Circuits	From 2pins to 16pins
	Insulation O.D.	1.40mm(Max)
	Mating lock	None
	Wire range	AWG24# to 28#
	Halogen Free	Nylon 66,UL94V-0
	None HF type material	PBT,UL94V-0
	Matched Terminals	A2003F-T series

Electrical properties	Current Rating	2A AC, DC
	Voltage Rating	125V AC, DC
	Contact Resistance	20mΩ Max
	Insulation Resistance	1000mΩ min
	Withstanding Voltage	500V AC/minute

Mechanical properties	Temperature range	-25℃ to 85 ℃
	Terminal Insertion Force	1.50 kgf (Max.)
	Terminal/Housing Retention Force	1.20 kgf (Min.)
	Crimping Pull Out Force	AWG#24 3.0 kgf (Min.) AWG#26 2.0 kgf (Min.) AWG#28 1.0 kgf (Min.)
	Other information please kindly check the following picture.

2, Corresponding engineering drawing & test report
Below file is our engineering drawing and testing report for further information. It's sure that it will be a
good reference for you to know this series parts clearly.
2.0mm Pitch Wire To Wire Connector, 2.00mm Pitch Wire-to-Wire Plug Housing, 51006 Crimp Housing

Mechanical Performance

Test Description		Procedure	Requirement
5-1	Actuator Insertion & Withdrawal Force	Insert and withdraw actuator at the speed rate of 25±3mm / minute.	Refer to paragraph 7
5-2	Crimping Pull Out Force	Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8)	AWG#24	3.0 kgf (Min.)
			AWG#26	2.0 kgf (Min.)
			AWG#28	1.0 kgf (Min.)
5-3	Terminal Insertion Force.	Insert the crimped terminal into the housing.	1.50 kgf (Max.)
5-4	Terminal/Housing Retention Force.	Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing.	1.20 kgf (Min.)
5-5	Durability	When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute.	Contact Resistance 40mΩ (Max.)
5-6	Vibration	Amplitude: 1.5mm P-P Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes. (Based upon MIL-STD-202 Method 201A)	Appearance No Damage. Contact Resistance 40mΩ (Max.) Discontinuity 1 μsec.(Max.)
5-7	Physical Shock	490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)
