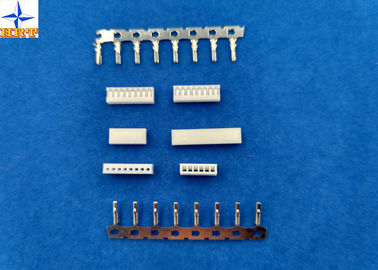

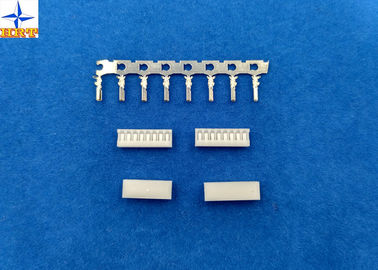

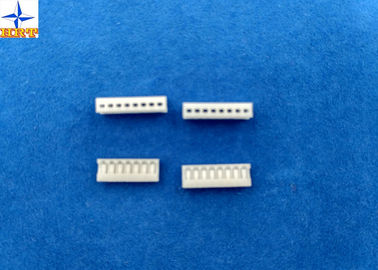

1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application

Hình ảnh lớn : 1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application

Thông tin chi tiết sản phẩm:

Place of Origin:	Dongguan, China(mainland)
Hàng hiệu:	HRT
Chứng nhận:	ISO9001/ ISO14001/UL/RoHS/REACH
Model Number:	B1259HR-NP

Thanh toán:

Minimum Order Quantity:	5000 pcs
Giá bán:	USD0.001 to 0.5 per pcs
Packaging Details:	Bag with outside carton
Delivery Time:	5 to 8 working days after payment checked
Payment Terms:	TT, Western Union, PayPal, L/C
Supply Ability:	28 million pcs per month

Tiếp xúc

Chi tiết sản phẩm

Category:	Crimp Housings	Suitable terminals:	B1259HR series
PC board mounting direction:	Right angle type	Wire range:	AWG32# to 28#
Flammability:	UL94V-0	Row:	Single
Điểm nổi bật:	Circuit Board Connectors , Wire To Board Connector

1, The specification of the product including basic size information, electrical and mechanical properties.

Basic size information
Color		White
Pitch		1.25mm
Contacts type		Right angle
Material		PA66
Category		Crimp Housings
Application		Signal
Circuits		2 to 15pins
Wire insulation diameter		1.00mm Max.
Terminal material		Phosphor Bronze
Finish terminal		Tin-plated

Electrical properties
Current Rating		1A AC, DC
Voltage Rating		125V AC, DC
Contact Resistance		20mΩ Max
Insulation Resistance		100MΩ min
Withstanding Voltage		500V AC/minute

Mechanical properties
Temperature range		-25℃ to 85 ℃
Other information please kindly check the following picture.

2, Related drawing and report

Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.

1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application

3, Application fied of product

This product is very ideal for VCRs, car stereo system, audio parts and many other consumer oriented electronics product. It is with strong structure against external force. And it is wildly seted in most of household appliance, computer, communication device. We also can controll defective rate under a low value, so our prodcut are welcomed and trusted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.

4, Our comprehensive service

We can offer better service for you in order to have a long and two-win business relationship, also to build personal friendship.
